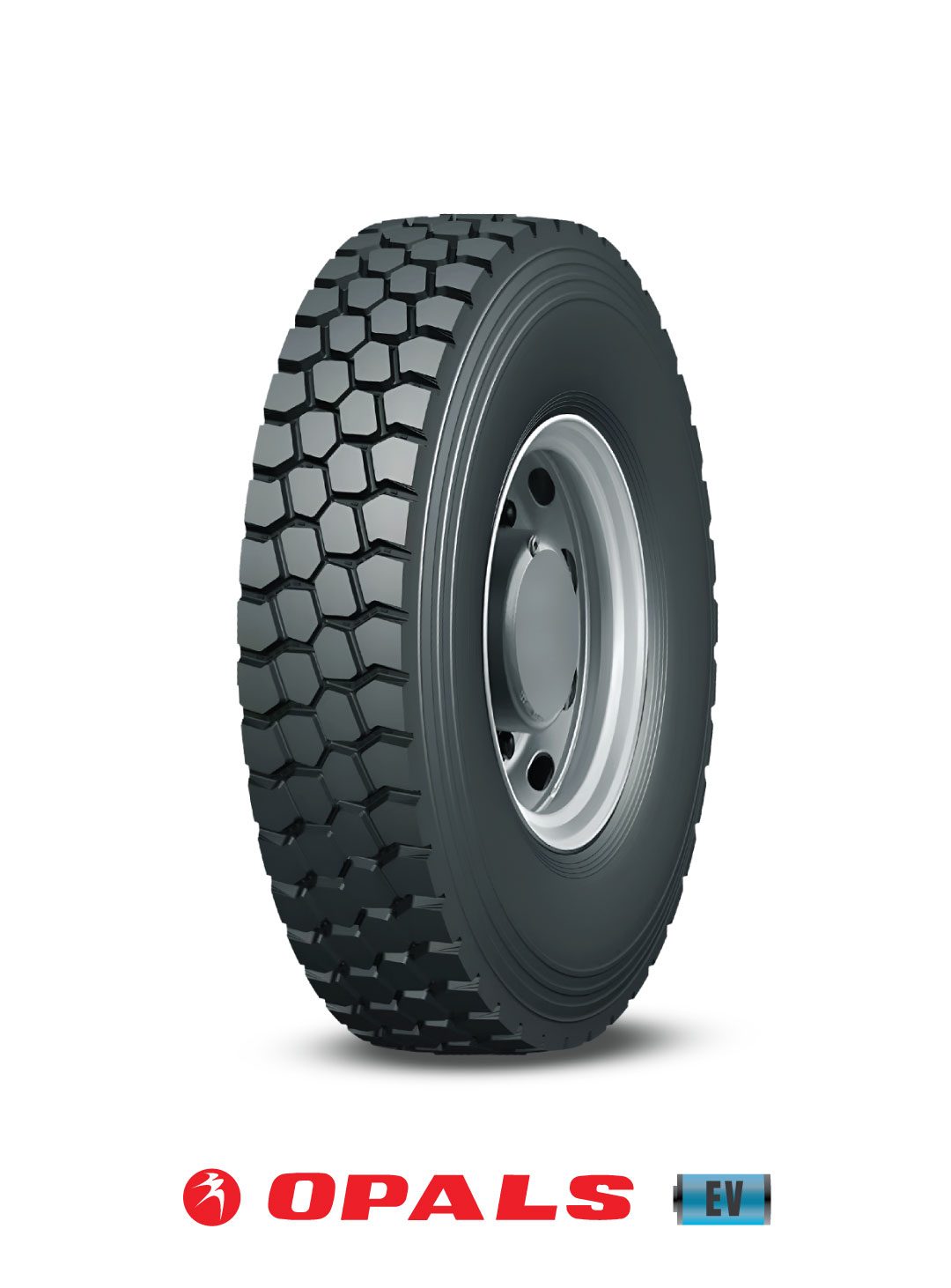

OPALS – EV OP359 12.00R20
Overage :
- Line Type: Mine Pattern
- Road Conditions: Suitable for mine and mixed road conditions
- Wheel Position: Rear wheel of a mine truck
- Distance: Short-distance
Description
OP359 is a heavy-duty mine-pattern tire developed to support the rear axle of electric mine trucks operating in short-distance routes. Designed for mixed and off-road mining conditions, this tire delivers stable performance and reliable traction on rough terrain. Engineered for the unique torque and weight distribution of EV trucks, it comes with a high-load index (156/153), handling up to 4000 kg (single) and 3650 kg (dual) per position. The 18.5 mm tread depth, 8.5-inch rim compatibility, and 900 kPa pressure provide excellent durability, grip, and endurance in high-stress mining applications.

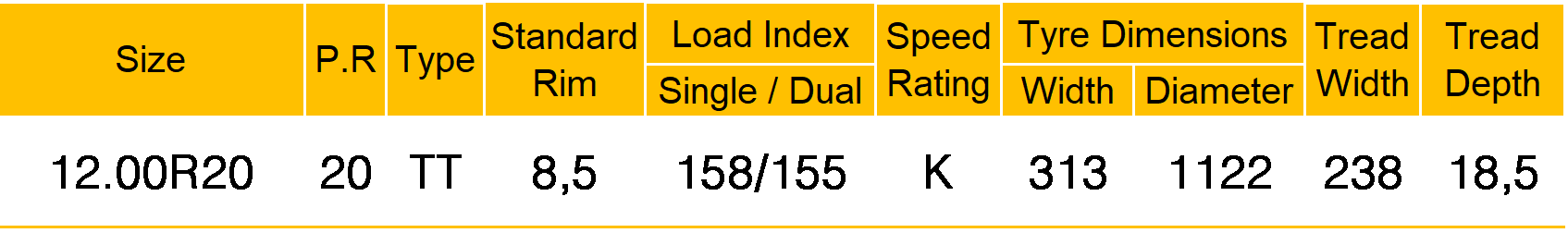

Tire Specifications
Additional Information
- Radial Tire Type : Wire (Hot Tire).
- Bias Tire Type : Nylon / Thread (Cold Tire).
- PLY (Ply Rating/PR) : The thickness of the internal component layers of the tire. The higher the ply rating, the thicker the layers, which can affect the tire’s performance.
- Tube Type (TT) : A type of tire that uses an inner tube.
- Tubeless (TL) : A type of tire that does not require an inner tube.
- Section Width : The width of the tire.
- Overall Diameter : The overall outer diameter/height of the tire.
- Load Index : The load capacity the tire can support in single or dual configuration.
- Max Load : The maximum load capacity calculated for each tire, then summed together.
- Pressure : The recommended air pressure.
- Speed Rating : A letter code indicating the maximum speed limit the tire can handle.
- Standard Rim : The size of the wheel/rim.
- Tread Depth : The measurement of the tread depth or the thickness of the tire tread.
